1. ATVmapping

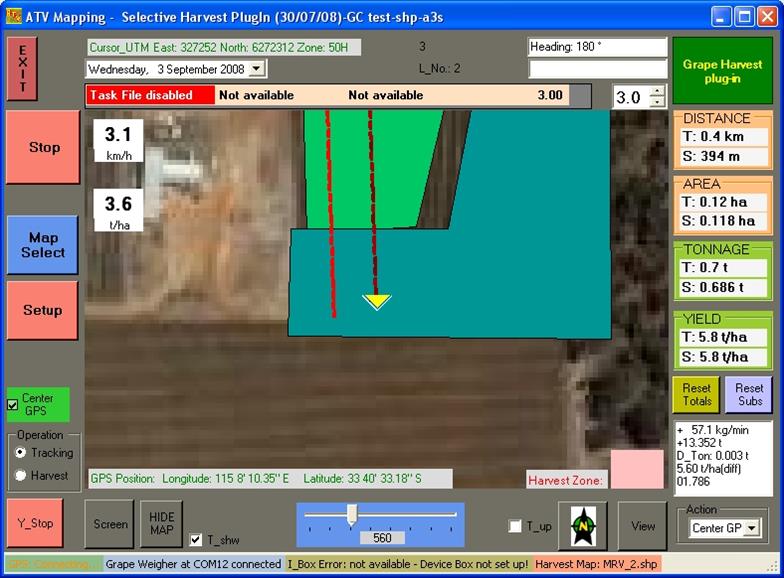

Screenshots.......

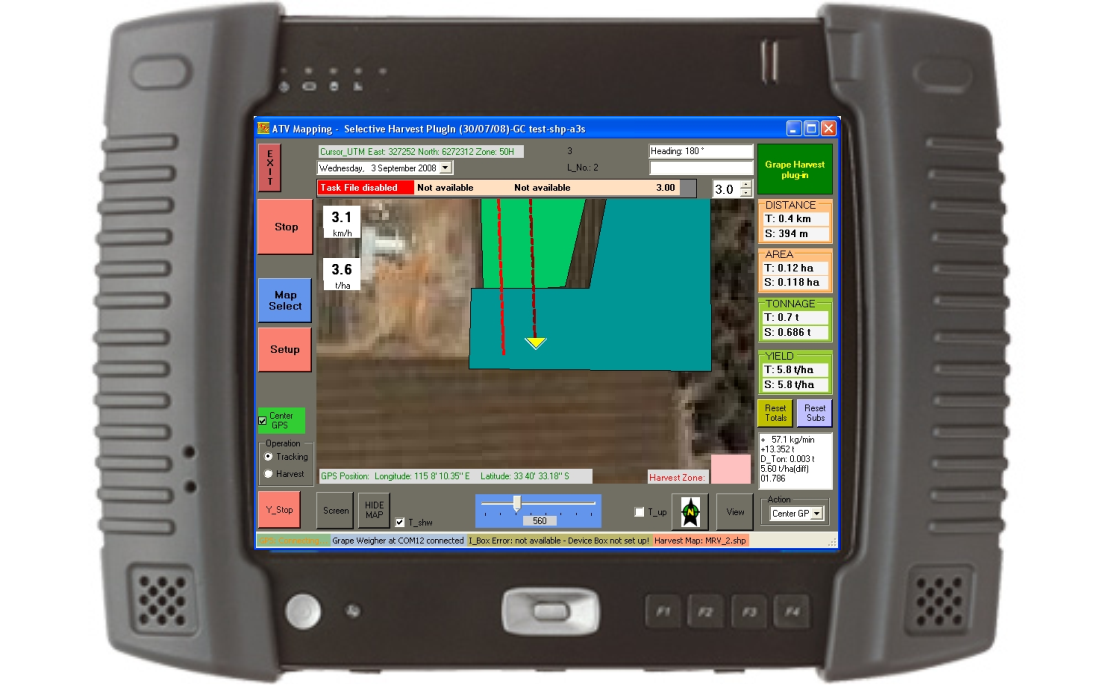

ATVmapping running on a ATV rugged UMPC
COPYRIGHT PROTECTED
2. ATVtracker






Versatile tool for side-specific applications, like:

    - Differential Harvesting (split/ selective harvesting)
    - Simple Variable Rate Spreading
    - Simple Variable Rate Spraying/ Fertilizing
Simple application for versatile logging functions, like:

    - Point/ Tag logging (broken posts/ diseases/ etc)
    - Boundary mapping
    - Track logging
    - Image logging w/ geo tagging
    - Spray application rate recording (in development, please ask)

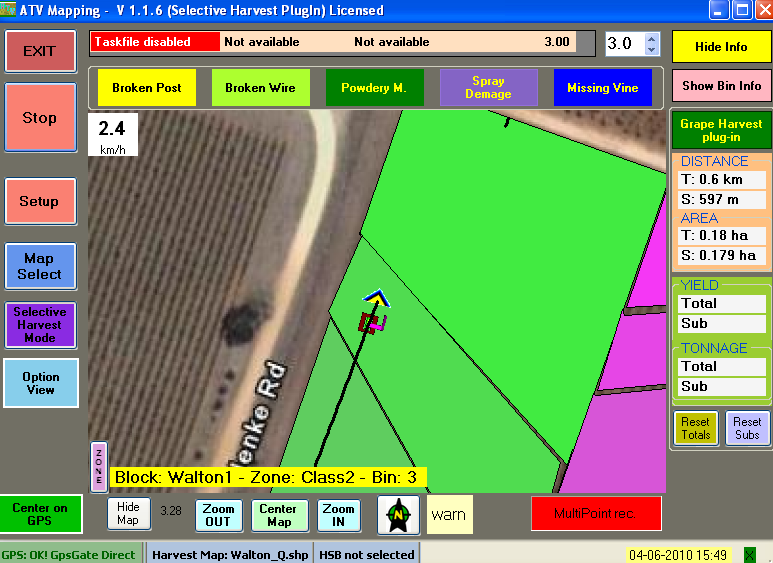

Option: Can be used together with the ATV yield monitor for "live mapping". With this configuration it can also display the tonnages of up to 4 (8 with advanced HSBox) different bins when using "Differential Harvest" plug-in!
Option: Tagging -  Logging tool for Track/ Point/ Boundary/ Tag-Recording

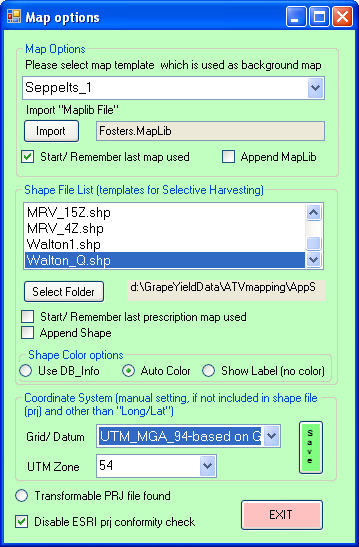

Graphic format: Shape files (ESRI-GIS format) can be used as application templates. Any graphic format can be used as background picture after geo-referencing (free tool available), e.g. Google Earth/  NearMap maps
Previous recorded points (tags) can be used as templates to carry out maintenance tasks, like recording broken posts while pruning and repairing them in an onward project.

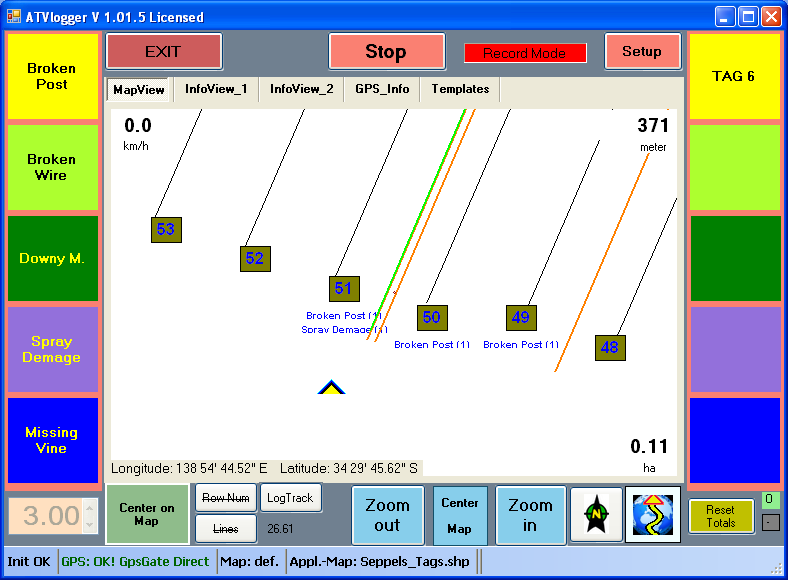

Navigation lines, row numbers and descriptions help to find these points.
Row templates can be created with an inbuilt tool or downloaded as a shape file (preferable for irregular shaped fields)!

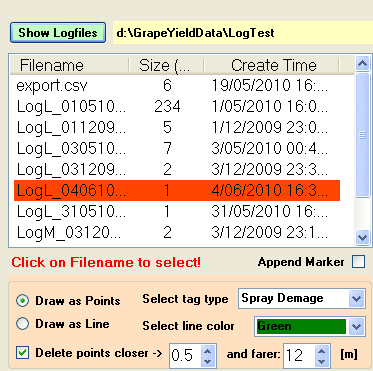

Previously recorded logging points/ tracks can easily be retrieved for further usage.
The last used logging file is highlighted to be quickly selected for continuing usage e.g. finding a spray track after pausing or refilling!

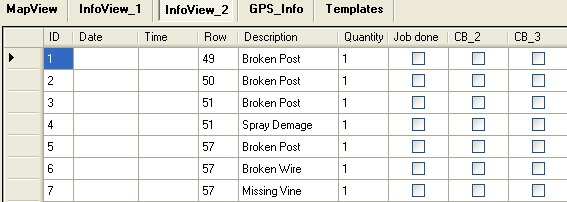

Overview of all points/ jobs

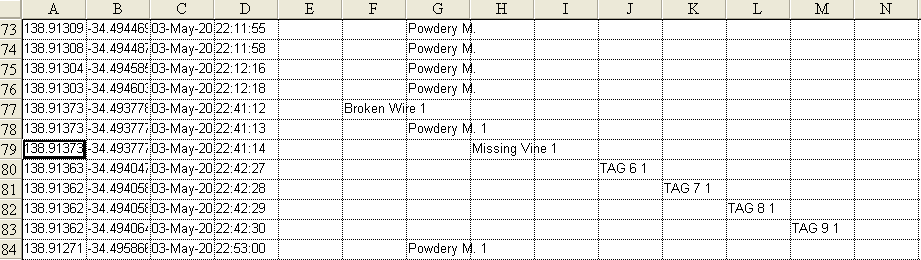

Simple export format (csv, ASCII) for further data processing in spread sheets, GIS programs.
NEW:

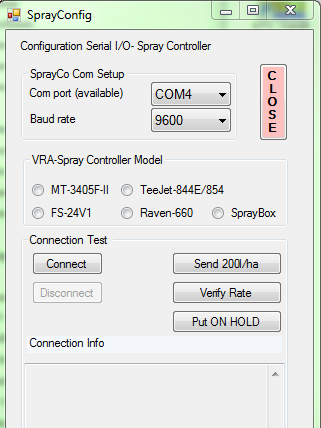

Use your existing Spray Controller together with
ATVmapping for VRA spraying and spray logging!
New PlugIn: Spray Control

OR
use ATV's "SprayLog"

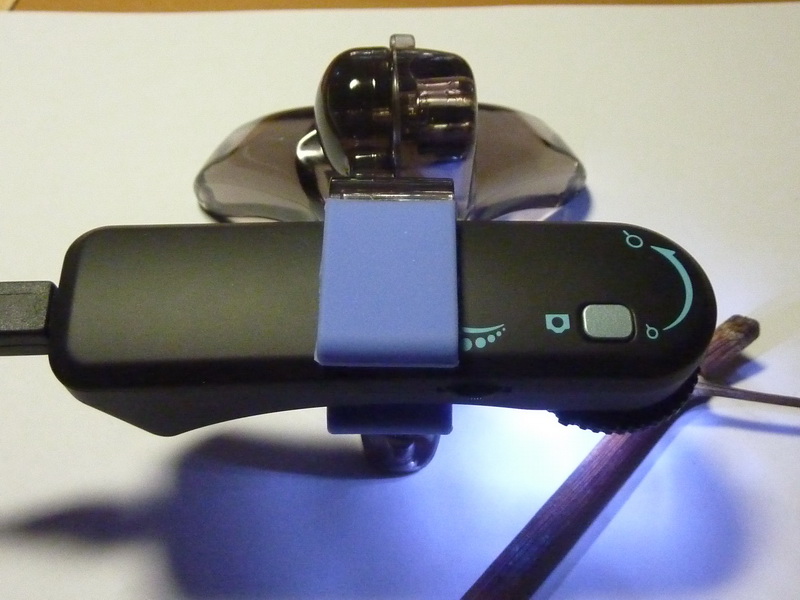

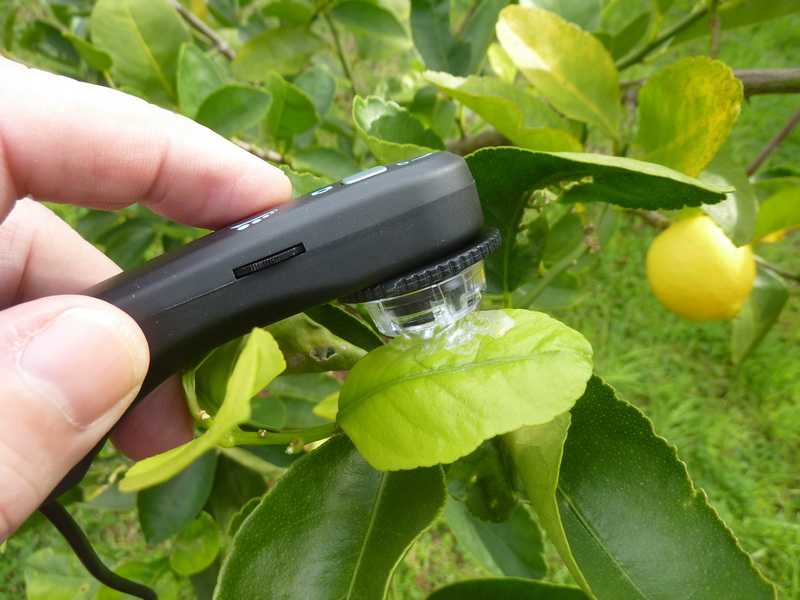

Add_on: Handheld USB microscope / camera for image-logging with geo tagging
Simple USB connection to ATV-UMPC
Magnification: 80X - (320X on 22" screen)
Still image resolution w/ ATVtracker:
320*280/ 640*480/ 800*600/ 960*720/
1280*1080

Takes still pictures (on ATVtracker)
Videos (with supplied software)
Light source: 4 white LED lights

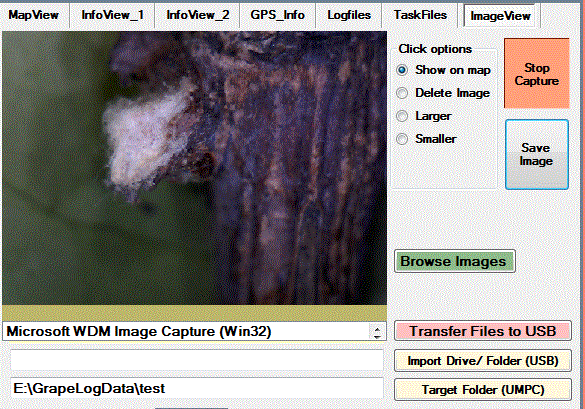

Preview of taken image

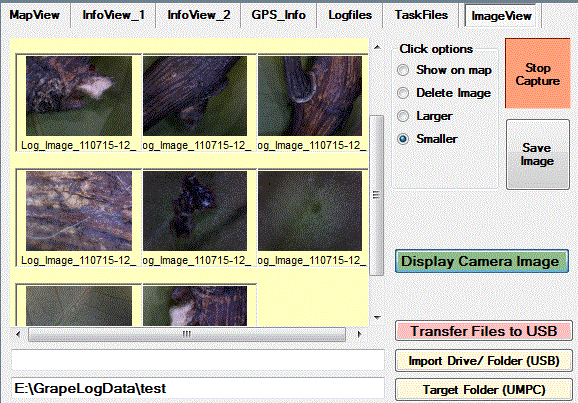

Preview thumbnails of all taken images. Simple click of thumbnail enlarges,  reduces thumbnails or deletes image.

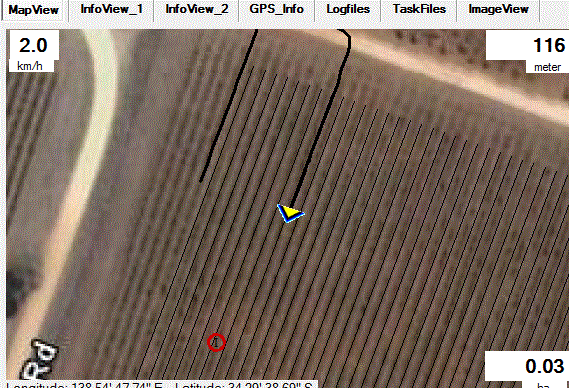

Clicking on thumbnail image shows position on MapView (below) e.g. for ground thruthing etc
NEW:
Image logging with geotagging
