1. GrapeYieldScan

ATV's GrapeYieldScan software was developed to connect the yield monitor hardware to any Windows based computer (ask ATV for rugged/ semi-rugged UMPCs).
It offers different screen displays for extensive information during picking, like:

Actual yield in [t/ha]
Average yield [t/ha]
Bin loads [ t]
Field loads [t]
Field area [ha]
Speed [km/h]

GPS set-up and corrections
Time Offset corrections

Data output control
Statistics
Diagnostic
etc....

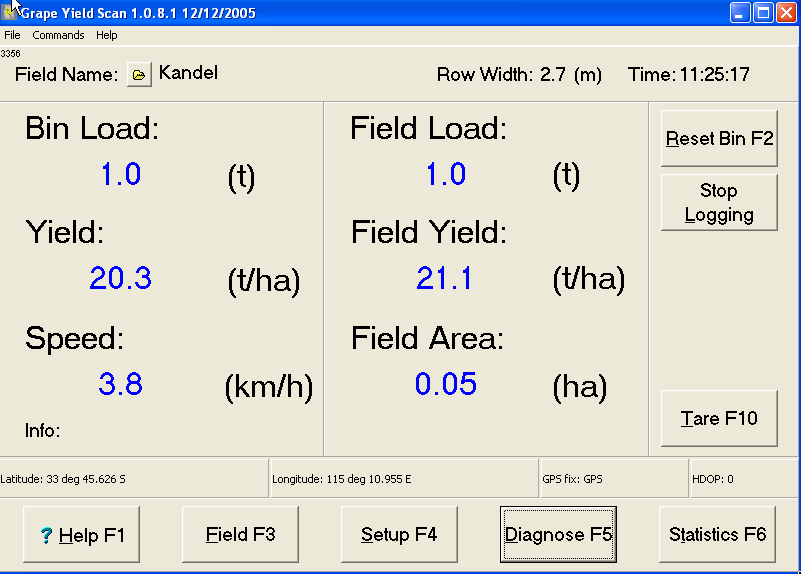

1. a                Main display

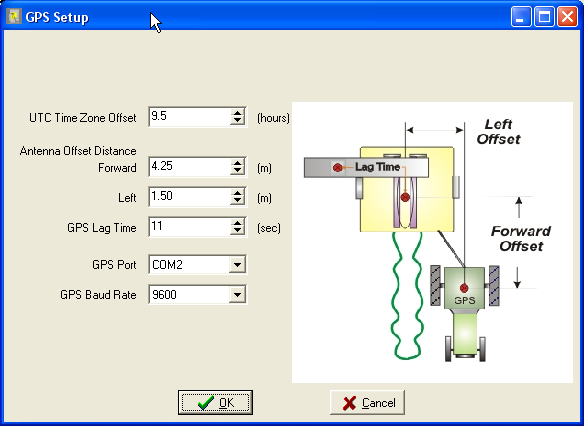

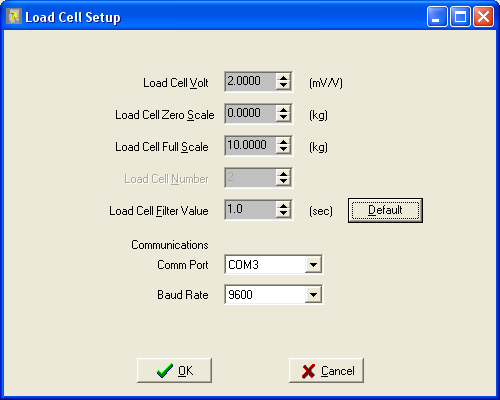

1. b                GPS/ Load cell setup/ corrections

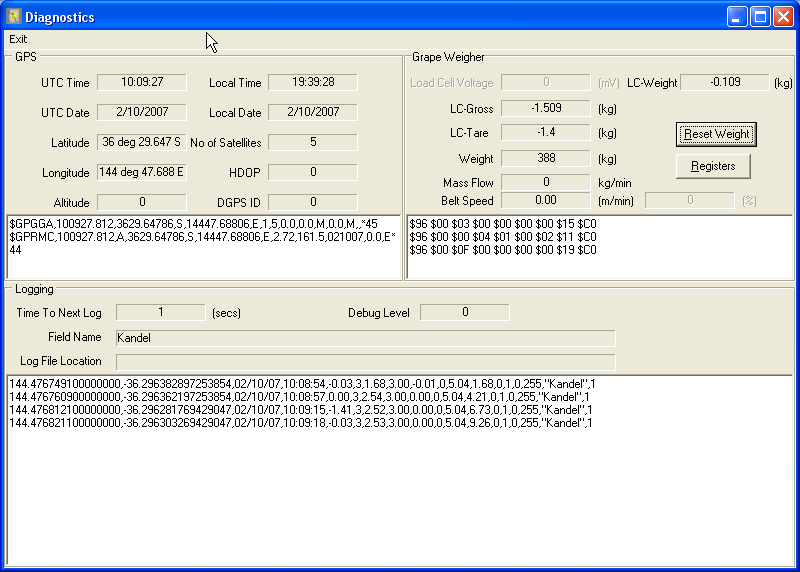

1. c                Diagnostic screen

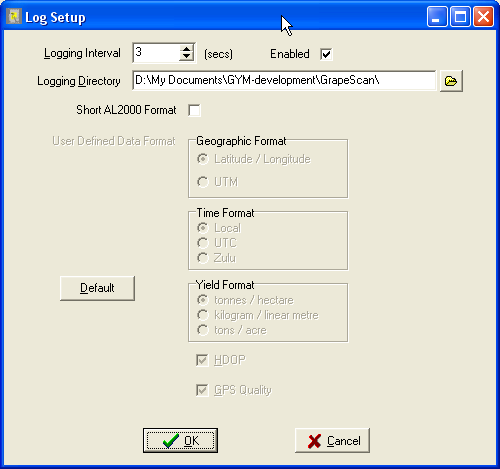

1. d                Logging options

|
